Price: $28.99
(as of Nov 22, 2025 04:56:49 UTC – Details)
Product description
Specifications
Input Voltage：DC 12VMax Load：42.2lbs/188NNo Load Travel Speed：0.2″/sec (5mm/s)Noise Level：＜50dBOperation Temperature：-25℃~+60℃Protection Class：IP54Duty Cycle：10%Limit Switch：Built-in
How to install the actuator ?
The linear actuators are controlled by applying a 12V DC voltage.Black wire to the positive terminal and red wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.The actuator has pre-installed limit switche inside, it cannot be adjustable.It can be stopped at any position, with self-locking function.It will hold its position when the power is off. It will auto stop when it reaches the end.
How to protect the actuator ?
Please use the 12V DC power battery. If using smaller voltage, the product cannot work well, use bigger voltage maybe will damage to the product.The mini linear actuator is suitable for pushing objects, not for pulling objects.The actual load does not exceed the rated load.Please don’t store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.The operating frequency of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minute of work.
What‘s in the box ?
1 x Linear Actuator
2 x Mounting Brackets
Add to Cart
Customer Reviews
3.8 out of 5 stars 4
5.0 out of 5 stars 1
4.0 out of 5 stars 1
Price
— no data
— no data
$17.99$17.99
Input Voltage
12V 12V 12V/24V
Max Load
1.44lbs/6.4N 4.3lbs/19.2N no data
No Load Speed
6″/sec (150mm/s) 2″/sec (50mm/s) no data
Stroke Length
2″ / 3″ /4″ 4″ no data

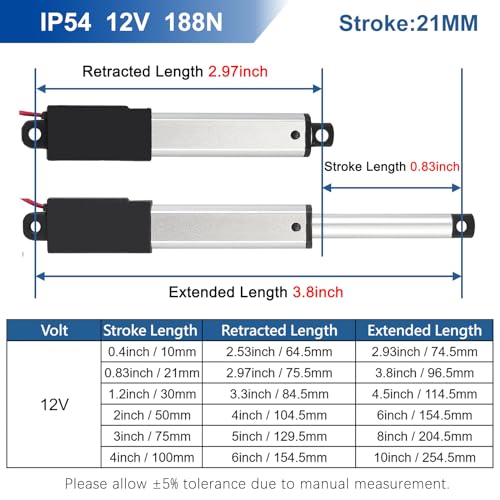

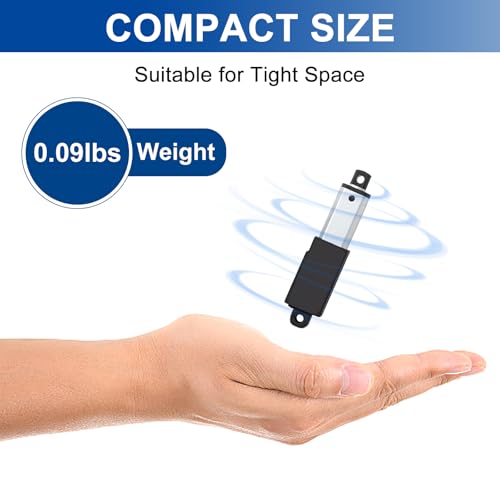

Product Dimensions : 0.83 x 0.83 x 3.8 inches; 2.4 ounces
Item model number : LMMiniTuigan
Date First Available : April 25, 2022
Manufacturer : JQDML
ASIN : B09YQZGQR3
Best Sellers Rank: #22,050 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #10 in Linear Motion Actuators
Customer Reviews: 4.3 4.3 out of 5 stars 43 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
⚙️【High quality】The linear actuator is made of high quality aluminum;with high performance motor and built-in limit switch,it can be stopped at any position and automatically stop at the top,with self-locking function.
⚙️【Features】Protection class: IP54 ;Noise level below 50dB ;Ambient temperature:-25° C to +60°C;with reliable performance, stable running,and good environment adaptability.
⚙️【Wide application】Micro Linear actuator can be widely used in Robot,Cabinet,Home Automation.

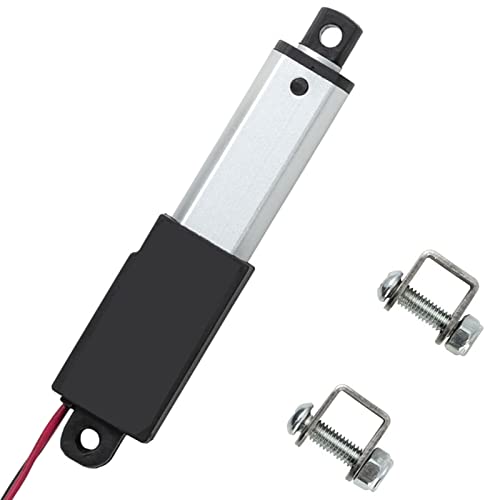

⚙️【Package included】1PC DC 12V Mini Linear Actuator and 2PCS Mounting Brackets.
